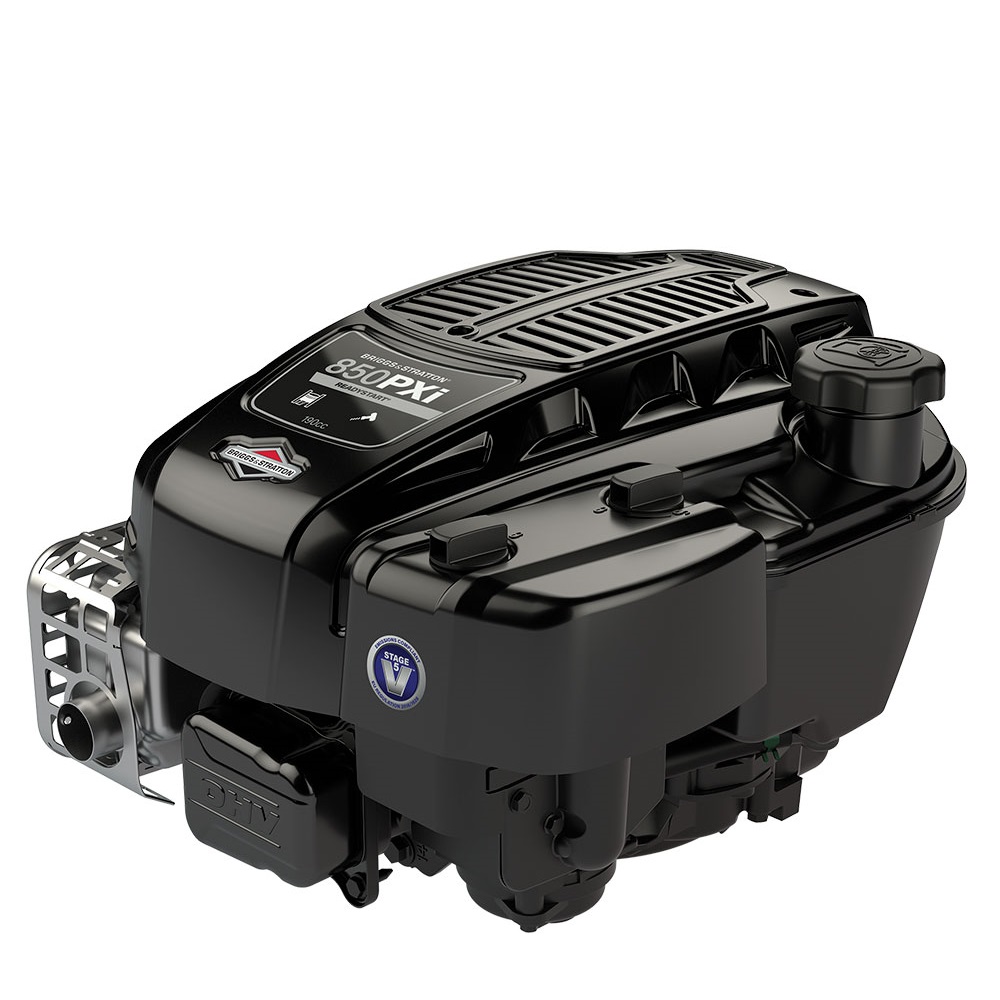

Briggs & Stratton 850PXi Series™ I/C® Lawnmower Engine

R8 135,00 Inc VAT

Out of stock

SKU 123P020052H5YY0001 - 1 Categories ,

Features

ReadyStart®

Provides simple and easy to use starting without having to prime the engine

Paper Air Filter

Provides improved protection against airborne debris entering the engine

Lo-Tone™ Muffler

Delivers low noise and good tonal quality

OHV Technology

Optimized performance that delivers longer engine life and improved fuel economy.

Magnetron® Electronic Ignition System

Ensures maintenance-free, easy starting.

Mechanical Governor

Controls the engine speed to deliver more usable power under heavy usage.

Low Permeation Fuel Lines

More environmentally friendly.

Splash Lubrication

Ensures adequate lubrication throughout the crankcase during normal operating conditions.

Float Feed Carburettor

Optimized fuel delivery for improved startability and superior performance.

Specifications

Model 850 PXi
 DESIGN
Engine Design 4-stroke air-cooled, Overhead Valve
Cylinder Cast Iron Sleeve
 SPECIFICATIONS
Gross Torque 11.53 NM @ 2600RPM
Displacement 190 cc
Bore 68.3 mm
Stroke 51.8 mm
Fuel Tank Capacity 1.0 Litres
Oil Capacity 0.6 Litres
 DIMENSIONS
Length 399 mm
Width 338 mm
Height 238 mm
Dry Weight 10.0 kg
PTO Shaft 22.2 mm x 70 mm

Warranty

Consumer / Home Owner 2 Years Limited
Commercial / Business Owner 1 Years Limited
See operators manual for full warranty policy.
