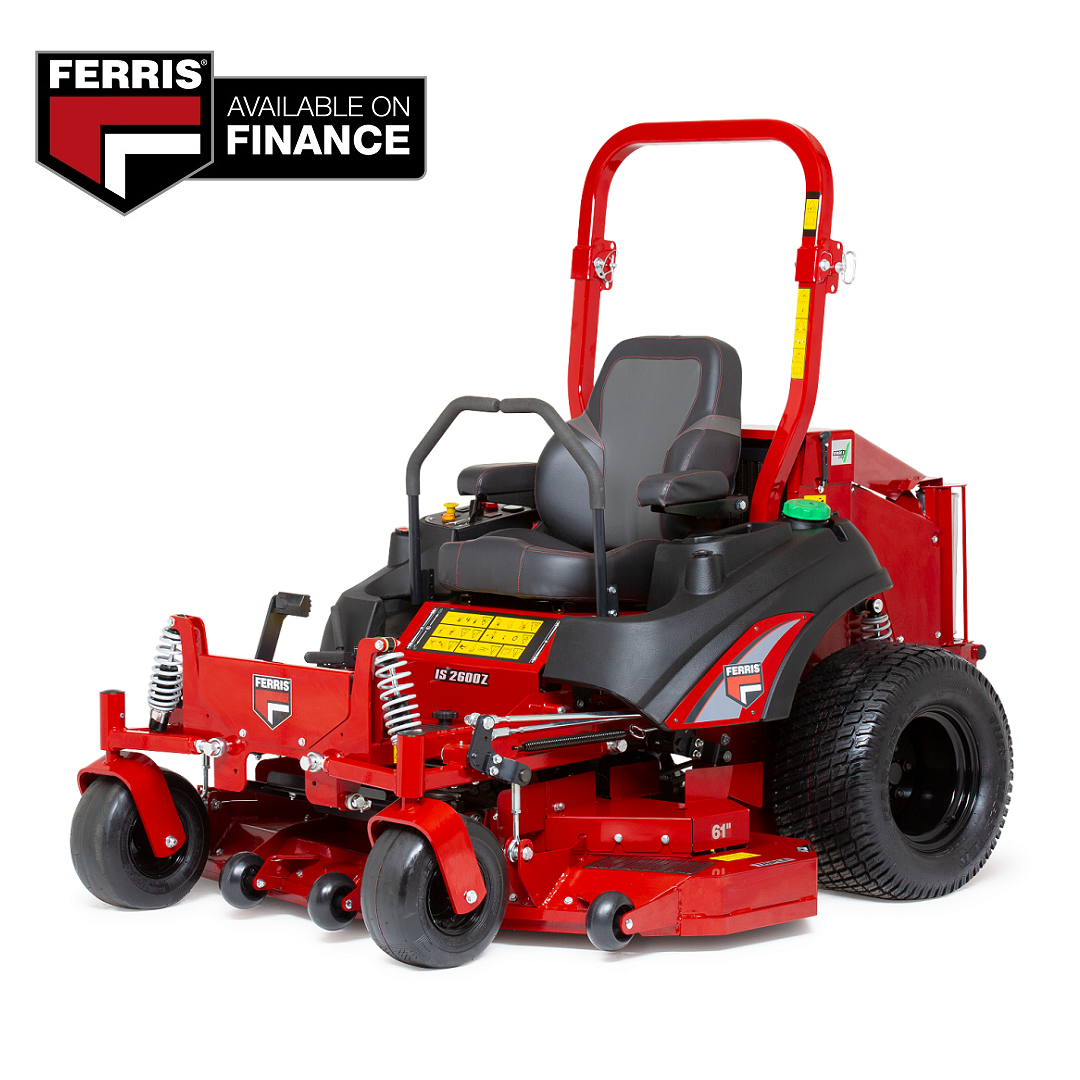

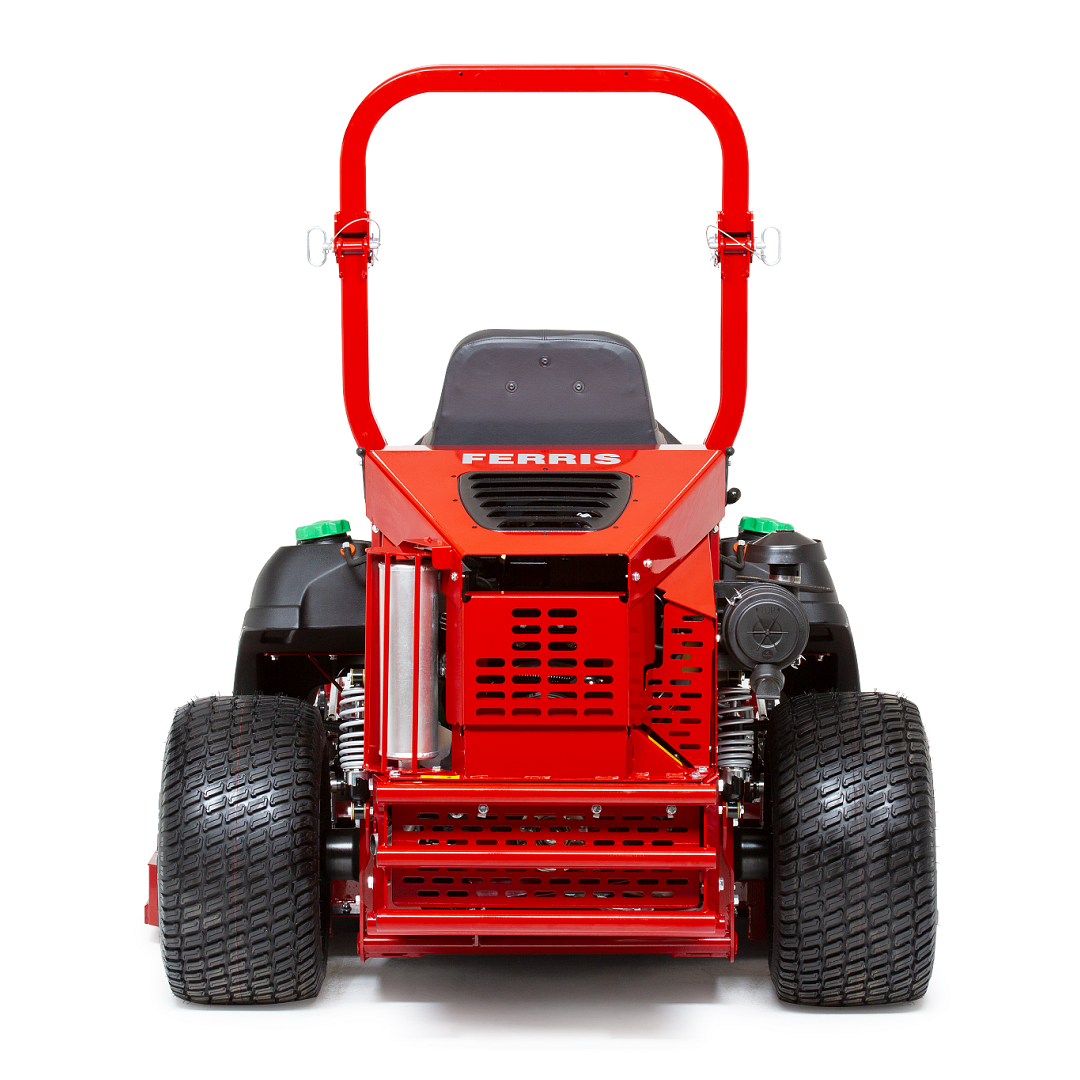

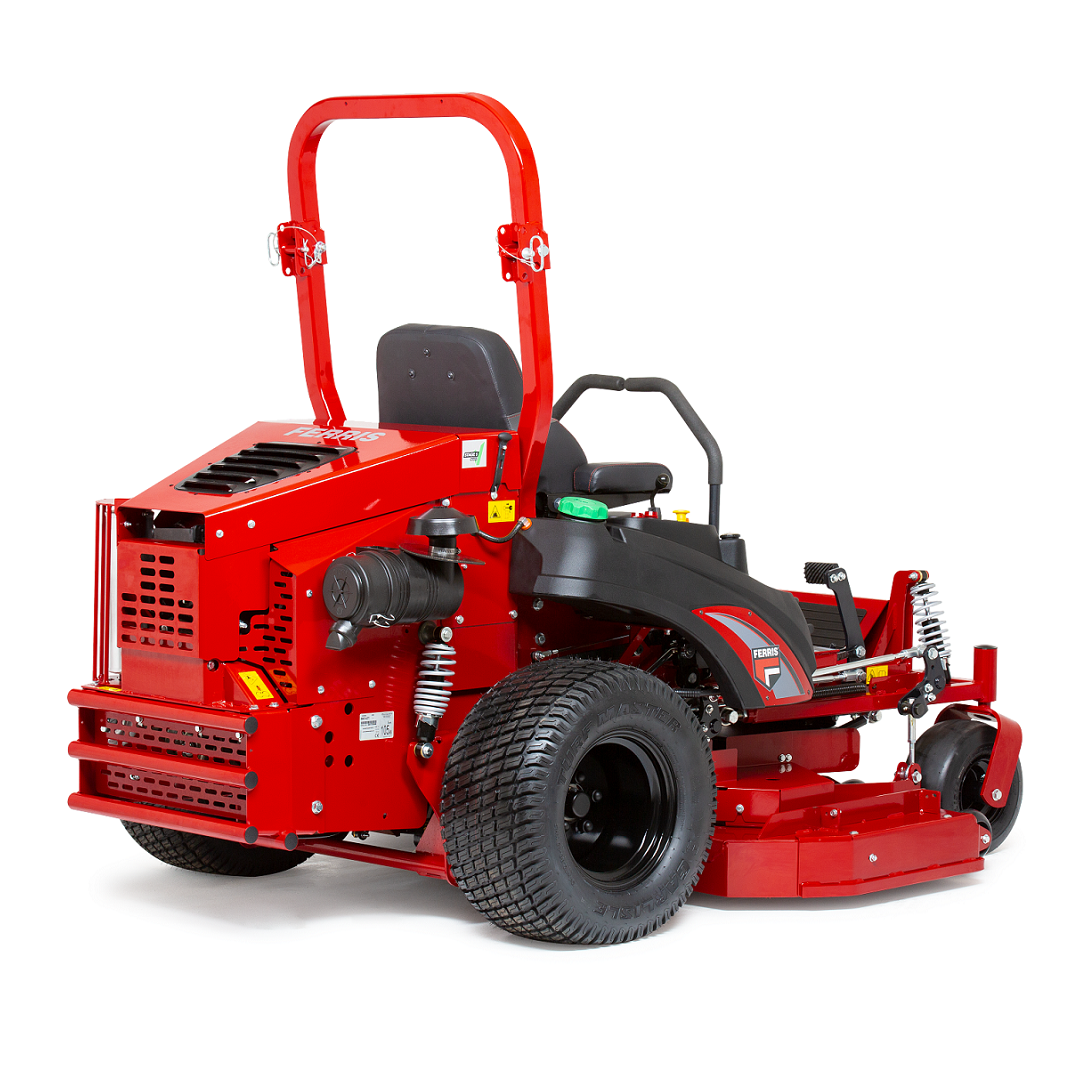

Ferris IS2600Z Diesel Commercial Zero Turn Mower with 61″ TRIPLE Deck

Features

ENGINE GROUP

Powered by 24-hp Yanmar three cylinder liquid cooled diesel engine (EPA FINAL TIER 4).
Rugged twin 21 litre fuel tanks (42 litres total).
Two-stage industrial air-cleaner.

OPERATOR CONTROL & COMFORT SYSTEMS

Foot-operated deck lift with single pin height of cut adjustment.
Folding Roll Over Protection Structure (ROPS) with retractable seat belt.
Premium mid-back seat with padded armrests and adjustable fore and aft positioning.
Removable floor plate for easy maintenance access.

MOWER DECK

TRIPLE mowing technology: All-in-One mower deck comes with side discharge, rear discharge and mulching capabilities out of the box.
Available in 155 cm cutting width with iCD™ Technology.
Cutting height: 3.8 – 12.7 cm / 1.5 – 5 inch adjusts in 0.6 cm increments.
Features top greaseable cast-iron spindles to maximize usable life.

SUSPENSION / CHASSIS

Patented four-wheel IS® suspension system dramatically increases quality of cut and operator comfort.
Heavy duty integrated rear bumper protects the engine compartment.

ENGINE
Make	Yanmar – Diesel, EPA FINAL TIER 4 / Euro Stage 5 ready
Model	3TNM74F-SAFS
Horsepower	24 HP
Cylinders / Displacement	3 Cylinders in line / 993 cc
Cooling	Liquid cooled
PTO	Electric PTO clutch
Starting	Electric
Fuel Capacity	42 Litres
MOWER
Cutting width	155 cm / 61” TRIPLE iCD™
Deck Configuration	Side discharge, Rear discharge and Mulching
Cutting Height	3.8 – 12.7 cm
Deck Construction	3.4 mm fabricated construction, full width double top deck, 12.7 mm scuff guards, 9.5 mm leading edge with overlap welded corners
Mower Spindles	Cast-iron 201 mm; 25.4 mm shaft
Deck lift system	Foot pedal, spring assisted
SUSPENSION & DRIVE TRAIN
Suspension	4-Wheel IS® Independent Suspension
Transmission	Independent Hydro-Gear® ZT-4400™ transaxles
Drive Axles	34.93 mm drive axles with 5 bolt wheel hubs
Drive Tyres	24 x 12,00 – 12 (4 ply)
Caster Tyres	13 x 6,50 – 6 (4 ply)
GROUND SPEED
Speed – Forward	0 – 18.0 km/h
Speed – Reverse	0 – 8.0 km/h
DIMENSIONS
Overall length	224 cm
Overall width	159 cm
Dry weight	743 cm
OPERATOR CONTROL & COMFORT SYSTEMS
Roll-Over Protection Structure	Standard, foldable with seat belt
Instrumentation	Fuel level gauge in each tank, visual water temperature gauge, oil pressure gauge, hour meter
Controls	Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit, deck shutdown engine protection system
Parking Brake / Safety Circuit	Internal wet disc brake in transaxle

Yanmar Engine	2 Year / 2000 hours Engine Manufacturer’s Limited Warranty
Deck Drive Belt (2-Belt)	3 Year Limited / 300 hours, whichever comes first. Parts & labour in year one. Parts only in years two and three.
Balance of machine	4 Year or 500 hours Limited Warranty, whichever occurs first.Unlimited hours during the first 2 years.
Coil-over-shocks and all suspension related components	5 Years / Unlimited hours.
Belts, Tyres, Brake Pads, Battery & Blades	90 days.

5601080 – Service Jack (without mount) 5601077 – Service Jack Mount Kit 5023279 – Flat Free Caster Wheels
