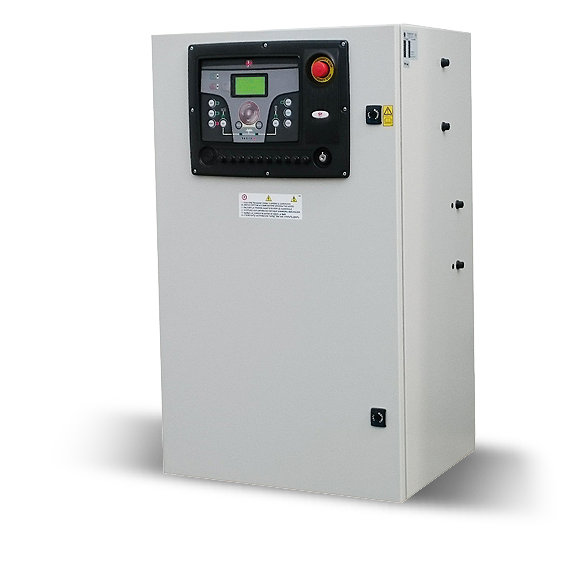

The AT809AT40173BZA control panel comes complete with the following equipment:
- TE809A AMF Controller
- TRMS high precision measures
- Graphical display 128×64 pixels
- 8 buttons navigation drive
- 10 indication LEDs
- 5 programmable digital inputs
- 3 analog / digital inputs programmable
- Programmable static outputs
- 2 relay outputs
- CANBUS J1939
- RS232 and RS485 serial ports for remote monitoring
- 12VDC 5A Battery Charger
- Metal enclosure IP55
- 4 pole contactor ATS with electrical and mechanical interlocks
- 4 pole mains isolator
- 4 pole generator isolator
- 3 load CTs
- 1 switch 1Ph + N engine preheating 230Vac / 10A
- 10 protection fuses
- Emergency Stop
- Alarm buzzer
